- Country
- France
- Manufacturer / Brand
- Grammont (Radiofotos, Fotos); Paris, Malakoff
- Year
- 1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100145
-
- alternative name: Radiofotos || Société des lampes Fotos

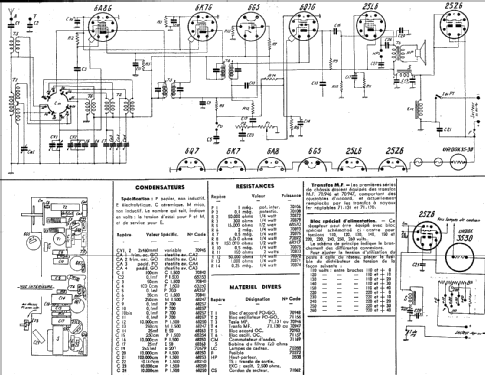

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Number of Transistors
- Semiconductors
- 35-30
- Main principle
- Superheterodyne (common); ZF/IF 472 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 2.1 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 846 - Grammont Radiofotos, Fotos;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 310 x 250 mm / 17.7 x 12.2 x 9.8 inch
- Notes
-
3 gammes d'ondes : OC de 19 à 60 m, PO de 200 à 570 m, GO de 850 à 1950 m. Antifading agissant sur lampes MF 6K7. Réglage de tonalité progressif. Lampes cadran : 2 x 6 V / 0.3 A.
Ébénisterie en noyer verni au tampon rehaussé barres chromées.
Ce modèle peut être equpié avec un bloc spécial d'alimentation pour tensions 110-260 V.
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Price in first year of sale
- 1,965.00 FRF
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Mentioned in
- -- Original prospect or advert (L'Ouest Éclair, 22.11.1938)
- Literature/Schematics (1)
- -- Original prospect or advert (Grammont 1938)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
