• Country
• France

• Manufacturer / Brand
• Grandin, Cristal-Grandin (SFRT); Paris, Montreuil

• Year
• 1957–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 111474

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UBF89 UCL82 UY85 EM81

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

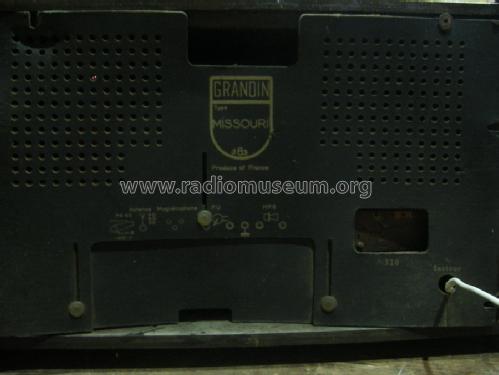

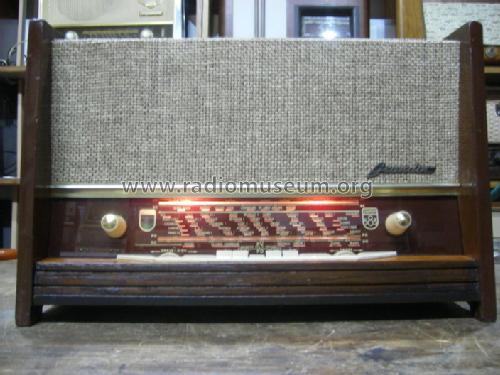

• Model: Missouri 583BO - Grandin, Cristal-Grandin SFRT;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 444 x 251 x 291 mm / 17.5 x 9.9 x 11.5 inch

• Notes

• 4 gammes d'ondes dont 1 bande étalée. Clavier 5 touches. 1 station préréglée, station préréglée optionnelle en GO (Luxembourg, Europe 1 ou Paris Inter). Cadre à air et antenne OC incorporée. Prises pick-up, HP supplémentaire et magnétophone.

  Ébénisterie noyer vernis poli.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 29,980.00 FRF

• Source of data
• -- Schematic

• Mentioned in
• Le grand livre de la TSF (Doctsf Ref 1000)

• Literature/Schematics (1)
• Magazine review (unknown)

• Literature/Schematics (2)
• -- Original prospect or advert (Tarif Janvier 1960)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
