Fugue 664BK Plan 019-187A
Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Country
- France
- Manufacturer / Brand
- Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216050
aus Servicedokumentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 19 cm = 7.5 inch
- Material
- Bakelite case
- from Radiomuseum.org

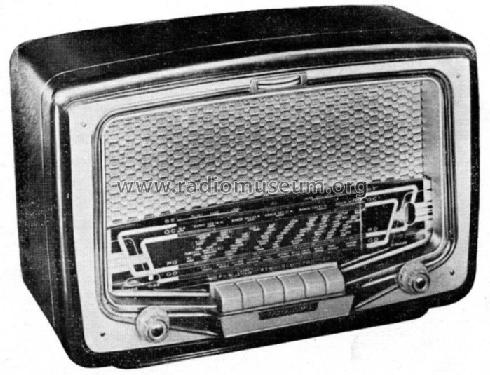

- Model: Fugue 664BK Plan 019-187A - Grandin, Cristal-Grandin SFRT;
- Shape
- Tablemodel with Push Buttons.
- Notes
-
4 gammes d'ondes dont 1 bande étalée en OC.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Le grand livre de la TSF (Doctsf Ref 4746)
- Author
- Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
