Winnipeg 676 3D Plan 019-178
Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Country
- France
- Manufacturer / Brand
- Grandin, Cristal-Grandin (SFRT); Paris, Montreuil
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 216134
aus Servicedokumentation
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- 3 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

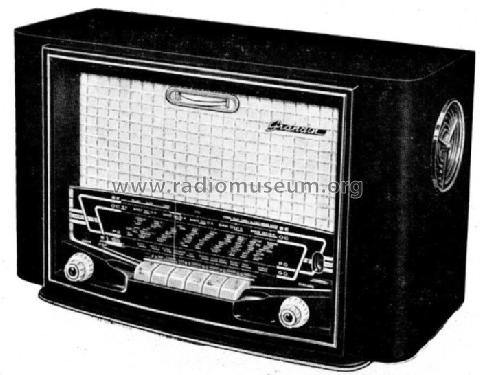

- Model: Winnipeg 676 3D Plan 019-178 - Grandin, Cristal-Grandin SFRT;
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 500 x 330 x 250 mm / 19.7 x 13 x 9.8 inch
- Notes
-
3 haut-parleurs: 19 cm électro-dynamique, 12 cm aimant permanent, 12 cm aimant permanent inveré.
Cadre à air blindé orientable incorporée.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 38,800.00 FRF
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- -- Original prospect or advert
- Author
- Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
