1305E43 Ch= WTG-78071C
Bradford; (brand of chain stores W.T.Grant Co.), Lynn MA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Bradford; (brand of chain stores W.T.Grant Co.), Lynn MA
- Year
- 1974
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 259772

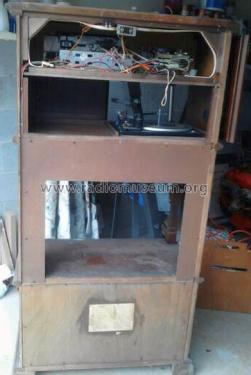

Picture courtesy of guest James Luallen
Picture courtesy of guest James Luallen
- Number of Transistors
- 19
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 1305E43 Ch= WTG-78071C - Bradford; brand of chain
- Shape
- Console with any shape - in general
- Notes
-
The Bradford 1305E43 is an AC operated 19 transistor combination AM/FM/FM stereo receiver, tape recorder/player and stereo phonograph with automatic record changer. Uses record changer BSR-C141R. Has Qty(2) PM 3.5" speakers and Qty(2) PM 8" speakers. Has headphone jack, tape inputs/outputs and connections for external FM antenna. Output stages are push-pull configuration.
- External source of data
- Data courtesy of guest James Luallen
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (set 1409, folder 4 dated 6-74)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
