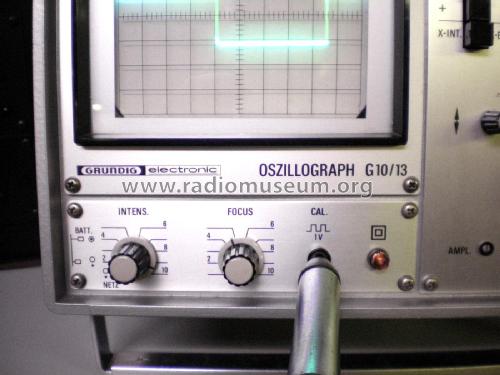

Oszillograph G10/13
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1970
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 268859
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 21,5-32 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszillograph G10/13 - Grundig Radio-Vertrieb, RVF,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Siehe auch Grundig Zweikanal-Oszilloskop G10/13Z.
Bandbreite 10 MHz, max. Empfindlichkeit 2 mV/cm, triggerbar bis 20 MHz, bei fehlendem Signal automatische Umschaltung auf "freilaufende" Ablenkung.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 1,472.00 DM
- Source of data
- -- Original prospect or advert
- Mentioned in
- Funk-Technik (FT) (13/1970, S. 482 / Neuvorstellung, Messe Hannover)
- Author
- Model page created by Hans-Friedrich Völkening † 22.3.16. See "Data change" for further contributors.
