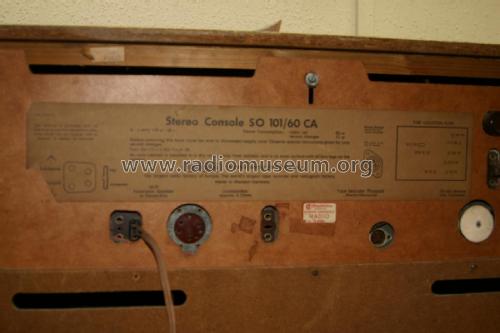

Grundig-Fleetwood Stereo Console SO101/60CA

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 286014
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

 Technical Specifications

  • Number of Tubes
  • 8
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; Export model
  • Tuned circuits
  • 7 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 50/60Hz, 110-125 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Grundig-Fleetwood Stereo Console SO101/60CA - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 730 x 800 x 390 mm / 28.7 x 31.5 x 15.4 inch
  • Notes

  • Export model for Canada, Record Changer TW501G stereo.
    See also the domestic model Grundig Stereo-Konzertschrank SO101/60 and eg. the US-model Majestic SO101/60 USA

    It was quite likely exported to Canada with the assistance of Electrical Products Mfg. Co. Ltd of Montreal (Fleetwood Canada), but this can not be 100% confirmed at this time.

  • Net weight (2.2 lb = 1 kg)
  • 28 kg / 61 lb 10.8 oz (61.674 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)

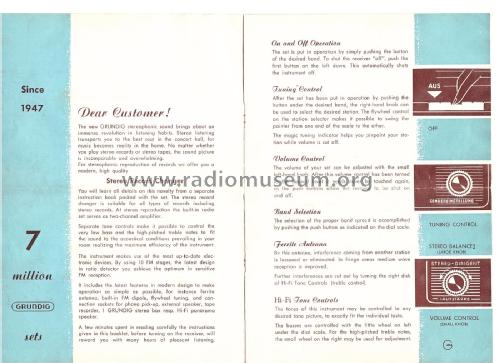

  • - - Manufacturers Literature (Instruction Manual)
  • Author
  • Model page created by Uwe Friedl. See "Data change" for further contributors.
