- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1974–1978 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 345867
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Quelle: Advert 1978.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 480 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 3R12: 2 × 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pop 200 - Grundig Radio-Vertrieb, RVF,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 250 x 158 x 74 mm / 9.8 x 6.2 x 2.9 inch
- Notes
-

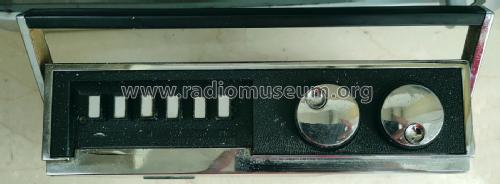

3 fixed LW stations: LUX (Luxembourg), EUR (Europa 1), FRI (France 1).
Has car antenna connector.The battery compartment originally can only be fitted with batteries of type 3R12, although there are further imprints indicating the use of round cells. However, there are no contacts for this. Possibly there were additional adapters for other battery types which we do not know at present.
Similar French models are Régate 2245 and Aubade.
- Net weight (2.2 lb = 1 kg)
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Price in first year of sale
- 230.00 FRF
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
- Other Models
-
Here you find 6208 models, 5434 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Collections
The model Pop is part of the collections of the following members.
Forum contributions about this model: Grundig Radio-: Pop 200
Threads: 2 | Posts: 8
An interesting aspect of the radio's battery voltage is that, according to the label on the battery holder, it can be used from either 2×4.5 V or 4×1.5 V. In the case of four "C" cells, there was probably an insert piece for the device, with which it can be connected to the current contact lugs. Another detail worth mentioning is that none of the four French-related devices mentions the use of "C" cells in the online literature. In the case of Pop 200, this is clear, as there is an inscription about it. Unfortunately, there is not a single available photo of the battery holder for the French devices.
Attachments
- voltage (351 KB)
Sándor Selyem-Tóth, 04.May.23
Sikerült megtalálnom ennek a rádiónak a gyökereit. Ez azért volt érdekes számomra, mert egyetlen Grundig katalógusban sem szerepel. Segítséget nyújtott a belső fotó Google képkeresővel való hasonlóságának kutatása, ami az eredményre vezetett. Így állították össze a családfát, amely két francia gyártóhoz vezet. Az egyik a gyártó volt, és Grundig jelvényekkel látták el.
I managed to find the roots of this radio. This was interesting to me because it is not listed in any Grundig catalog. Help was provided by researching the similarity of the interior photo with Google image search, which led to the result. This is how the family tree was assembled, which leads to two French manufacturers. One of them was the manufacturer and it was marked with Grundig insignia.
Family tree:
Régate 2245- Sonolor; Párizs, La Courneuve - 1971
Abude - Visseaux / Televisso; Lyon/Párizs- 1971
Super Abude - Visseaux / Televisso; Lyon/Párizs- 1969
Sándor Selyem-Tóth, 14.Apr.23
