- Pays
- Allemagne
- Fabricant / Marque
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Année
- 1974–1978 ?
- Catégorie
- Radio - ou tuner d'après la guerre 1939-45
- Radiomuseum.org ID
- 345867
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Quelle: Advert 1978.
- No. de transistors
- 6
- Principe général
- Super hétérodyne (en général); FI/IF 480 kHz
- Gammes d'ondes
- PO et GO
- Tension / type courant
- Piles sèches / 3R12: 2 × 4,5 Volt
- Haut-parleur
- HP dynamique à aimant permanent + bobine mobile
- Matière
- Plastique moderne (pas de bakélite, ni de catalin)
- De Radiomuseum.org
- Modèle: Pop 200 - Grundig Radio-Vertrieb, RVF,
- Forme
- Portative > 20 cm (sans nécessité secteur)
- Dimensions (LHP)
- 250 x 158 x 74 mm / 9.8 x 6.2 x 2.9 inch
- Remarques
-
3 fixed LW stations: LUX (Luxembourg), EUR (Europa 1), FRI (France 1).
Has car antenna connector.The battery compartment originally can only be fitted with batteries of type 3R12, although there are further imprints indicating the use of round cells. However, there are no contacts for this. Possibly there were additional adapters for other battery types which we do not know at present.
Similar French models are Régate 2245 and Aubade.
- Poids net
- 1.3 kg / 2 lb 13.8 oz (2.863 lb)
- Prix de mise sur le marché
- 230.00 FRF
- Littérature
- -- Original prospect or advert
- Auteur
- Modèle crée par Sándor Selyem-Tóth. Voir les propositions de modification pour les contributeurs supplémentaires.
- D'autres Modèles
-
Vous pourrez trouver sous ce lien 6208 modèles d'appareils, 5434 avec des images et 4203 avec des schémas.
Tous les appareils de Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
Contributions du forum pour ce modèle: Grundig Radio-: Pop 200
Discussions: 2 | Publications: 8

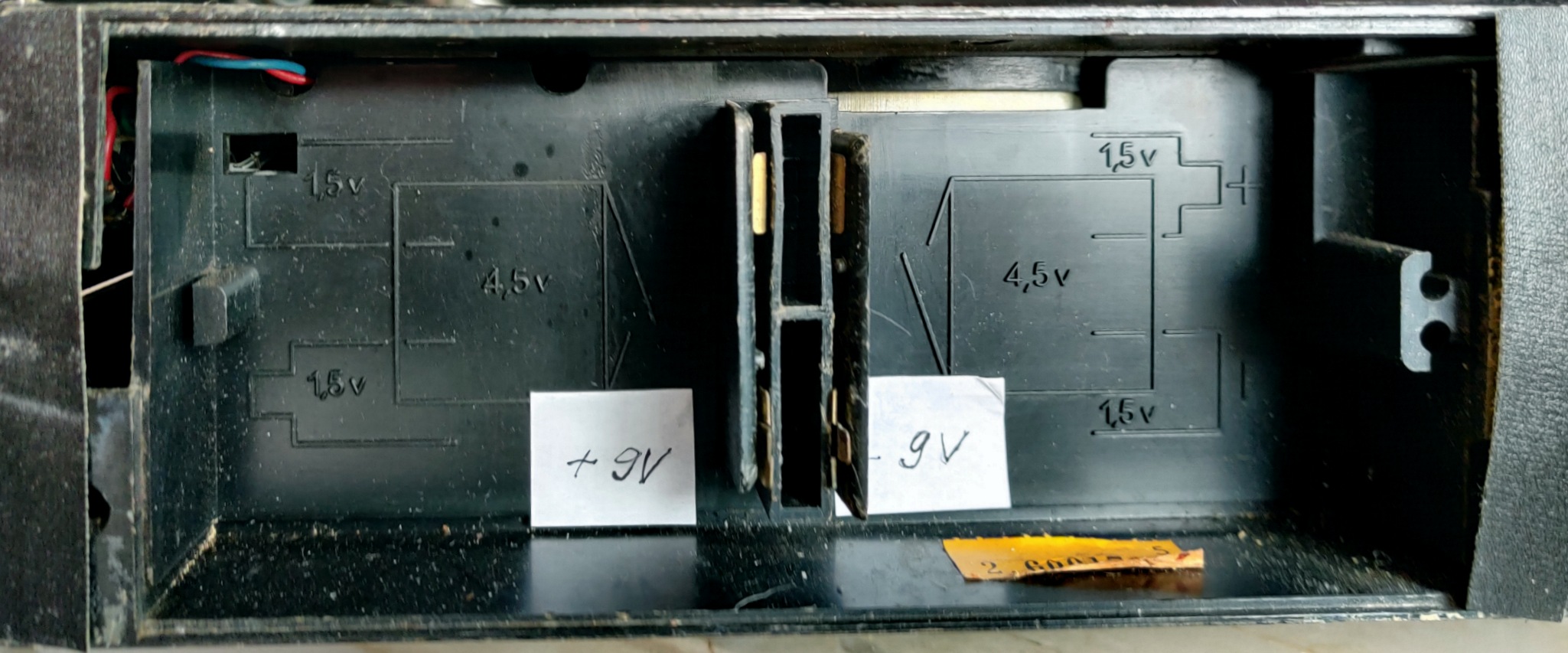

An interesting aspect of the radio's battery voltage is that, according to the label on the battery holder, it can be used from either 2×4.5 V or 4×1.5 V. In the case of four "C" cells, there was probably an insert piece for the device, with which it can be connected to the current contact lugs. Another detail worth mentioning is that none of the four French-related devices mentions the use of "C" cells in the online literature. In the case of Pop 200, this is clear, as there is an inscription about it. Unfortunately, there is not a single available photo of the battery holder for the French devices.
Pièces jointes
- voltage (351 KB)
Sándor Selyem-Tóth, 04.May.23
Sikerült megtalálnom ennek a rádiónak a gyökereit. Ez azért volt érdekes számomra, mert egyetlen Grundig katalógusban sem szerepel. Segítséget nyújtott a belső fotó Google képkeresővel való hasonlóságának kutatása, ami az eredményre vezetett. Így állították össze a családfát, amely két francia gyártóhoz vezet. Az egyik a gyártó volt, és Grundig jelvényekkel látták el.
I managed to find the roots of this radio. This was interesting to me because it is not listed in any Grundig catalog. Help was provided by researching the similarity of the interior photo with Google image search, which led to the result. This is how the family tree was assembled, which leads to two French manufacturers. One of them was the manufacturer and it was marked with Grundig insignia.
Family tree:
Régate 2245- Sonolor; Párizs, La Courneuve - 1971
Abude - Visseaux / Televisso; Lyon/Párizs- 1971
Super Abude - Visseaux / Televisso; Lyon/Párizs- 1969
Sándor Selyem-Tóth, 14.Apr.23
