• Country
• Austria

• Manufacturer / Brand
• Grundig Austria GmbH; Wien

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 159933

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF185 BF184 BF194 BF195 BF238 BF237 BC148 BC181 AC117 AC187 AC188 AA116 AA116 1N60 5522 B30C300

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; Export model

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

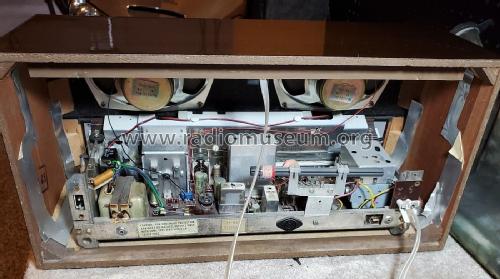

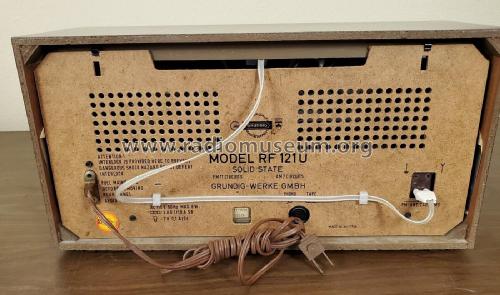

• Model: RF121U Ch= CS60U - Grundig Austria GmbH; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 17.25 x 9 x 6.25 inch / 438 x 229 x 159 mm

• Notes

• Netzanschluss: 115 V, 60 Hz

• Literature/Schematics (1)
• -- Original-techn. papers. (Grundchassis AM-FM CS60U)

• Author
• Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.
