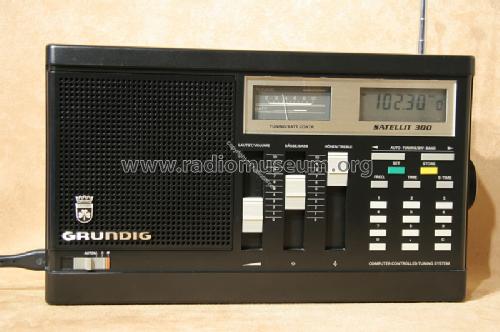

Satellit 300

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1983–1985

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73872

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

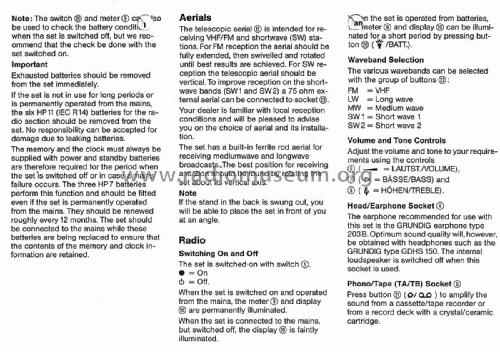

• Picture

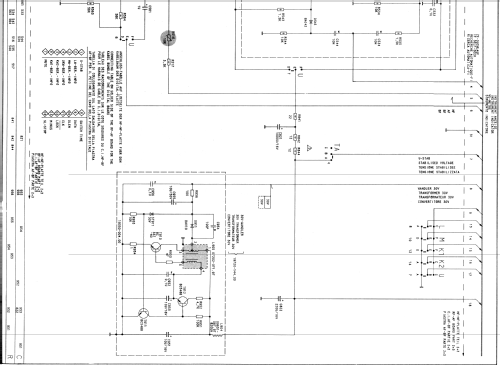

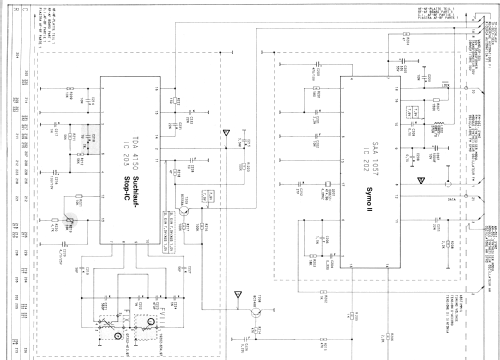

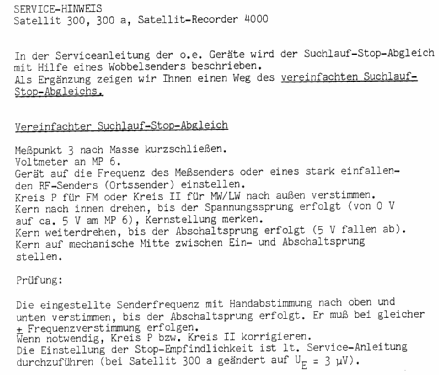

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• 2SK193 BF240 BC337 BC548 BC558 BC369 TDA4100 SAA1057 TDA4150 TDA1011

• Main principle
• Superheterodyne (common); ZF/IF 450/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / C: 6 × 1.5 & AA: 3 × 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Satellit 300 - Grundig Radio-Vertrieb, RVF,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 304 x 180 x 70 mm / 12 x 7.1 x 2.8 inch

• Notes

• Grundig Satellit 300 ist ein Einfachsuper. PLL-Abstimmung, 35 Stationsspeicher.

  Empfangsbereiche:

  UKW/FM: 87,5...108 MHz
  KW 1: 3,9...10,499 MHz
  KW 2: 10,5...22 MHz
  MW: 513...1611 kHz
  LW: 150...353 kHz.

  Transistoren sind 1x pro Typ gelistet

  Bereits 1981 wurde Grundig Satellit 300 als äusserlich deutlich abweichender Prototyp/Entwicklungsmuster vorgestellt.

  Verbesserter Nachfolger ist Grundig Satellit 300a.

  ---

  SW coverage 3900 - 22000 kHz in two ranges, digital PLL synthesis, 35 memories, clock.

• Net weight (2.2 lb = 1 kg)
• 2.2 kg / 4 lb 13.5 oz (4.846 lb)

• External source of data
• Roeder, H.-E.

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.

• Other Models

• Here you find 6208 models, 5433 with images and 4203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
