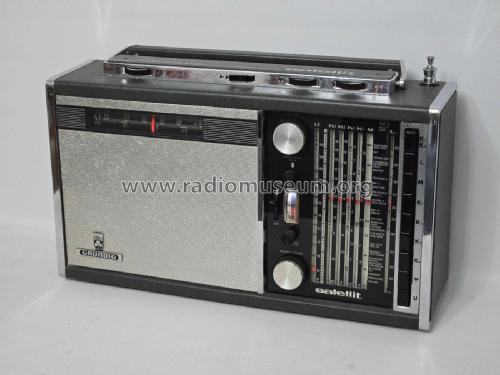

Satellit Transistor 5000

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Datos

Foro

Imágenes

Colecciones

País
Alemania

Fabricante / Marca
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Año
1964–1966

Categoría
Radio - o Sintonizador pasado WW2

Radiomuseum.org ID
71126

- alternative name: Grundig Portugal || Grundig USA / Lextronix

Imágenes
Esquemas

Satellit Transistor 5000; Grundig Radio- (ID = 82453) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82454) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82455) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82456) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82459) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82460) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82458) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 82457) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460773) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460774) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460776) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460778) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460779) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460780) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460781) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460782) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460784) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460785) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460787) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460788) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460789) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460790) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460791) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460792) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460793) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460794) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1460795) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 1851250) Radio — Grundig Radio- Satellit Transistor 5000 (3)

Satellit Transistor 5000; Grundig Radio- (ID = 2574630) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 1942469) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 1942849) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2534548) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2534549) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2574621) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574623) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574624) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574625) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574626) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574627) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574628) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574629) Radio — Grundig Radio- Satellit Transistor 5000 (1)
eigene Sammlung

Satellit Transistor 5000; Grundig Radio- (ID = 2574631) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2589586) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2589587) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2589588) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2691930) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734878) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734879) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734880) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734881) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734882) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734883) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734884) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734885) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2734886) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2764976) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2887239) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Satellit Transistor 5000; Grundig Radio- (ID = 2887240) Radio — Grundig Radio- Satellit Transistor 5000 (1)

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

Especificaciones técnicas

Numero de transistores
17

Semiconductores

Principio principal
Superheterodino con paso previo de RF; ZF/IF 460/10700 kHz; 3 Etapas de AF

Número de circuitos sintonía
9 Circuíto(s) AM 13 Circuíto(s) FM

Gama de ondas
OM, OL, más de dos OC y FM

Tensión de funcionamiento
Baterías recargables o pilas / 6x1,5 Volt

Altavoz
2 Altavoces

Potencia de salida
2 W (unknown quality)

Material
Materiales diversos

de Radiomuseum.org
Modelo: Satellit Transistor 5000 - Grundig Radio-Vertrieb, RVF,

Forma
Portátil > 20 cm (sin la necesidad de una red)

Ancho, altura, profundidad
410 x 250 x 120 mm / 16.1 x 9.8 x 4.7 inch

Anotaciones
Exportversion des Satellit 205, lediglich andere Skala und andere Typenbezeichnung.
Klangregler, AFC, KW-Lupe, Bandspreizung Netzgerät TN12.
10 KW Bereiche.

Peso neto
7 kg / 15 lb 6.7 oz (15.419 lb)

Documentación / Esquemas (1)
-- Original-techn. papers.

Autor
Modelo creado por Arpad Roth † 27.3.17. Ver en "Modificar Ficha" los participantes posteriores.

Otros modelos
Donde encontrará 6208 modelos, 5434 con imágenes y 4205 con esquemas.
Ir al listado general de Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Colecciones | Museos | Literatura

Colecciones

El modelo Satellit Transistor es parte de las colecciones de los siguientes miembros.

Museos

El modelo Satellit Transistor se puede ver en los siguientes museos.

1. Rundfunkmuseum Rheinland-Pfalz (D)

Forum

Contribuciones en el Foro acerca de este modelo: Grundig Radio-: Satellit Transistor 5000

Hilos: 3 | Mensajes: 12
