• Year
  • 1973/1974
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29238
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 19
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 5 AM circuit(s)     7 FM circuit(s)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 120-127; 220-230 / 6×1,5 Volt

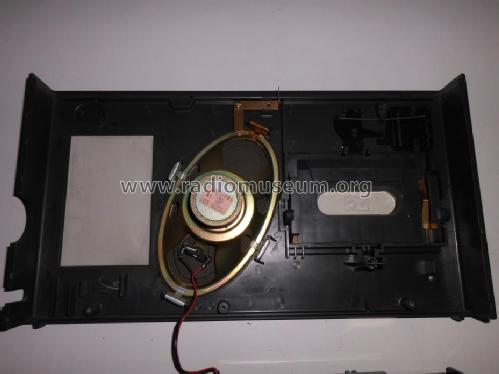

  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 1 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Signal 2000 - Grundig Radio-Vertrieb, RVF,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 170 x 60 mm / 12.2 x 6.7 x 2.4 inch
  • Notes
  • NF-Ausgangsleistung bei Netzbetrieb = 1,7 W.
    2 Ausführungen: KW/MW/UKW oder LW/MW/UKW.
  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
