• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 75238

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 7 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player + Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Studio RT50 - SV50 - Grundig Radio-Vertrieb, RVF,

• Shape
• Console with Push Buttons.

• Dimensions (WHD)
• 950 x 850 x 410 mm / 37.4 x 33.5 x 16.1 inch

• Notes

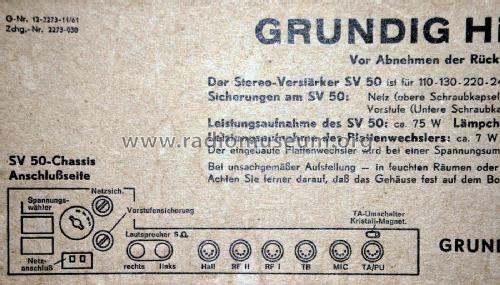

• TUNER: GRUNDIG model RT 50. Amplifier: Grundig model SV 50. Record Changer: Dual 1009/764/II/DN ( magn. system ) 4 speed, autom. Diodes = 15. Tropicalized. Tape-deck on request. Rectifier: 1. Channel separation 35dB (deci-Bel) Frequency response 30 - 16000cps +/- 1 dB. Push buttons = 5 Controls = Duplex drive flywheel tuning. Speaker = For use with Grundig Stereo Box 100

• Net weight (2.2 lb = 1 kg)
• 63 kg / 138 lb 12.3 oz (138.767 lb)

• External source of data
• Grundig magazine 1965

• Author
• Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
