KS-500-U
Grundig Austria GmbH; Wien
- Country
- Austria
- Manufacturer / Brand
- Grundig Austria GmbH; Wien
- Year
- 1963 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230080
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Details
- Record Player (perh.Changer); Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- 4 Loudspeakers / Ø 6 inch = 15.2 cm
- Power out
- 8 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: KS-500-U - Grundig Austria GmbH; Wien
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 40 x 18 x 14 inch / 1016 x 457 x 356 mm
- Notes
-

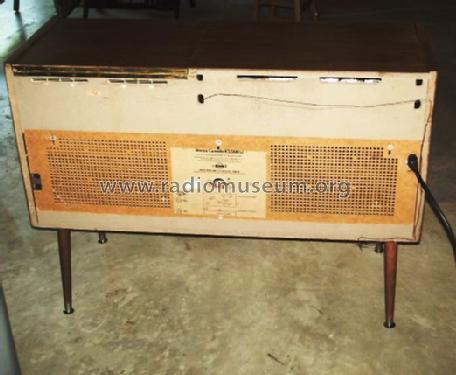

The KS-500-U console is a tube stereo receiver with 1-AM, 1-FM and 2-SW bands. It also has a 3-speed record changer. There are also two outputs for additional left and right speakers. There is one tape input on the chassis of the receiver. There are 4 speakers, 2-6x9 drivers on front of the console and 2 electrostatic (?) tweeters, one on each side of the console. The receiver's face place plate is plastic, not glass. There is a tuning eye as well as a stereo strength meter. The cabinet is teak veneer. The dimensions stated above do not include the 12" legs raising the console's height to 30".
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Brad Shapero. See "Data change" for further contributors.
