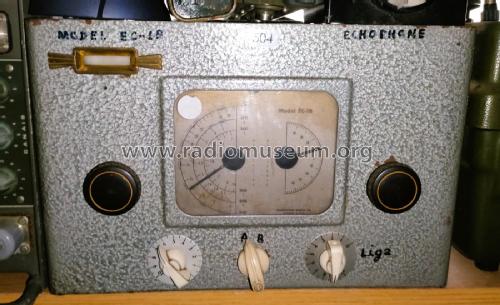

Echophone EC-1B Var.1
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Pays
- Etats-Unis
- Fabricant / Marque
- Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX
- Année
- 1945/1946
- Catégorie
- Récepteur amateur (bandes amateurs, ev. avec bande AM)
- Radiomuseum.org ID
- 78800
- No. de tubes
- 6
- Principe général
- Super hétérodyne (en général); FI/IF 455 kHz
- Circuits accordés
- 5 Circuits MA (AM)
- Gammes d'ondes
- GO, OC et Police (Maritime)
- Tension / type courant
- Appareil tous courants (CA / CC) / 115-125 Volt
- Haut-parleur
- HP dynamique à électro-aimant (électrodynamique)
- Matière
- Boitier métallique
- De Radiomuseum.org
- Modèle: Echophone EC-1B [Var.1] - Hallicrafters, The; Chicago,
- Forme
- Modèle de table sans poussoirs, modèle cheminée
- Dimensions (LHP)
- 298 x 198 x 202 mm / 11.7 x 7.8 x 8 inch
- Remarques
- Coverage: 0.545-2, 2-7.5, 7.5-30.5 MHz, AM/CW, ANL, speaker on the top-panel, bandspread, the EC-1A is nearly identical to model EC-1B. Both are updated versions of the EC-1, the EC-1B uses an inductor link to the oscillator coil for the bandspread with a cheaper broadcast-type variable capacitor, the Hallicrafters S-41G (gray) and S-41W (white) are electrically and mechanically identical to the EC-1B with the main differences being color and knob style and were produced in 1945 just prior to the introduction of the S38. This Variant may be a Prototype of the EC-1B, eliminates noise limiter and phones/speaker switch placed on rear apron, Info from manual dated December 1945
- Poids net
- 4.850 kg / 10 lb 10.9 oz (10.683 lb)
- Prix de mise sur le marché
- 20.00 $
- Source
- Communications Receivers
- Auteur
- Modèle crée par d'un membre de D. Voir les propositions de modification pour les contributeurs supplémentaires.
