• Country
• France

• Manufacturer / Brand
• Hameau-Radio; Paris

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119981

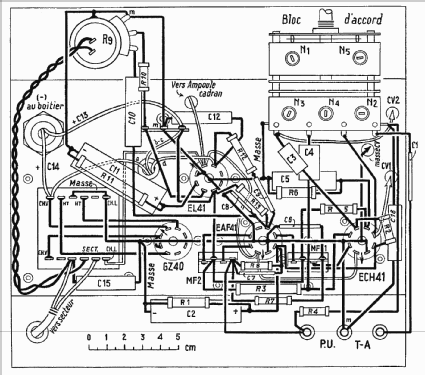

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH41 EAF41 EL41 GZ40

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Super Reflexo 4 - Hameau-Radio; Paris

• Literature/Schematics (1)
• Radio Constructeur et Dépanneur

• Author
• Model page created by Raynal Aufils. See "Data change" for further contributors.
