Oszillograph HM412-2
HAMEG GmbH, Frankfurt
- Country
- Germany
- Manufacturer / Brand
- HAMEG GmbH, Frankfurt
- Year
- 1976 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 168115

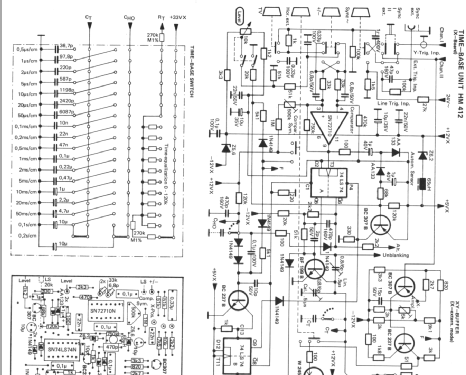

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- D13-620GH
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Oszillograph HM412-2 - HAMEG GmbH, Frankfurt
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 212 x 237 x 380 mm / 8.3 x 9.3 x 15 inch
- Notes
- Zweikanaloszilloskop, Schirm 8x10cm
X-Verstärker: 0...2MHz (-3dB)
Y-Verstärker: 0...10MHz (-3dB)
Triggerung: DC...20MHz
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Dieter Barkawitz. See "Data change" for further contributors.
