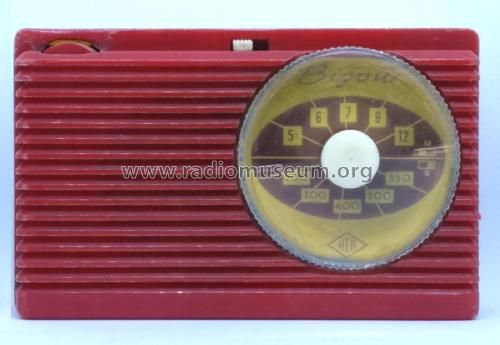

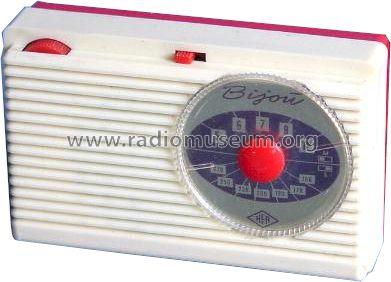

Bijou MW bis Nr.: 2000
HEA; Wien
- Country
- Austria
- Manufacturer / Brand
- HEA; Wien
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8560

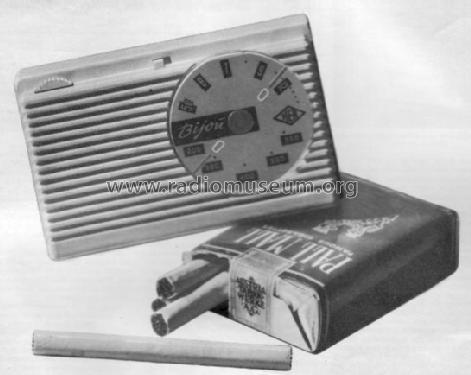

Detailbild aus ID = 3044 von Herrn Heigl
HEA Bijou 2
HEA Bijou

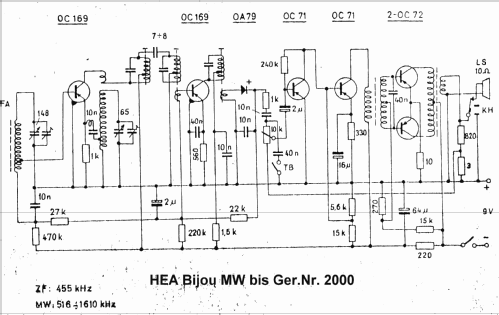

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Bijou [MW bis Nr.: 2000] - HEA; Wien
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 109 x 67 x 30 mm / 4.3 x 2.6 x 1.2 inch
- Notes
- Price in first year of sale
- 645.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Museums Bote, Österr. (Heft 107/2001, S.10 ff, Gerätebeschreibung)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Other Models
-
Here you find 195 models, 138 with images and 157 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from HEA; Wien
Collections
The model Bijou is part of the collections of the following members.
Forum contributions about this model: HEA; Wien: Bijou
Threads: 1 | Posts: 1
Gewicht: 0,24kg mit Batterie (9V-Block) Gehäuse: Plastik, BHT: 109x67x30mm, Transistoren: 2xOC169, 2xOC71, 2xOC72. Der Bijou war das kleinste, in Österreich hergestellte Radio. Es gab 3 Modelle: Bijou1 = MW, Bijou2 = MW/LW, Bijou3 = KW/MW. Orig.Preis: 645S ?
Gerhard Heigl, 17.Jul.02
