Cuba 57
HEA; Wien
- Country
- Austria
- Manufacturer / Brand
- HEA; Wien
- Year
- 1957
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 73076
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 459 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

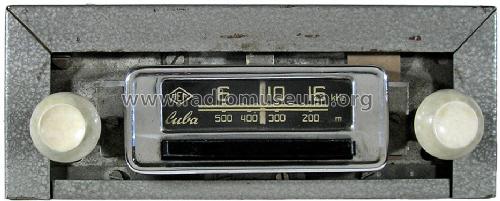

- Model: Cuba 57 - HEA; Wien
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 70 x 180 mm / 7.1 x 2.8 x 7.1 inch
- Notes
- Separater Stromversorgungsteil 195×110×75 mm, Gewicht 2,2 kg; Stromaufnahme bei 6 Volt: 8 Ampere, bei 12 Volt: 4 Ampere.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Price in first year of sale
- 2,620.00 ATS
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Martin Fichtinger. See "Data change" for further contributors.
