• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 157567

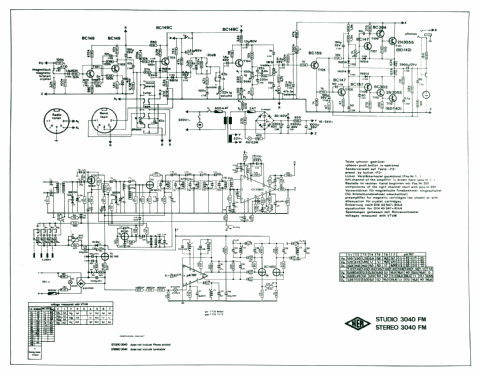

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

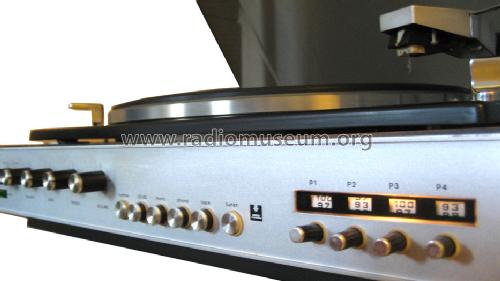

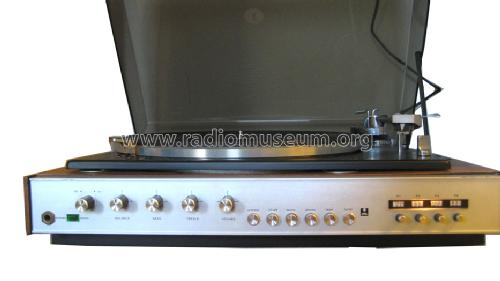

• Model: Studio 3040FM - HEA; Wien

• Shape
• Book-shelf unit.

• Notes

• 4 FM-Fixtasten
  Eingebauter Plattenspieler Lenco L78.
  Bei einigen Geräten wird auch das HF- Modul des Hea Studio Steuergerätes 8000 verwendet.

  Das Gerät gibt es auch ohne eingebauten Plattenspieler als Stereo 3040FM.
