• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102687

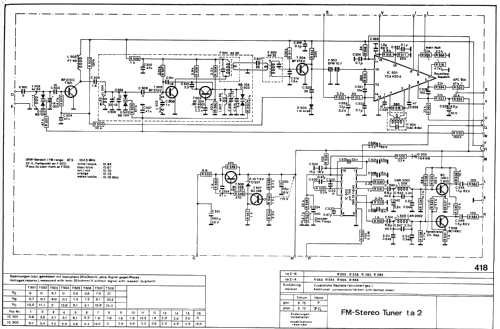

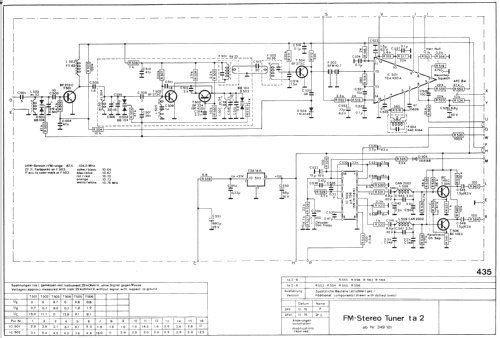

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 21

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org
• Model: Studio 4060 FM [Phono] - HEA; Wien

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 465 x 150 x 410 mm / 18.3 x 5.9 x 16.1 inch

• Notes

• Transistoren und IC, 4 Stationstasten.
  Mit Plattenspieler Lenco L78.
  Lautsprecheranschlüsse 4-8 Ohm, 2 × 20 Watt Sinus.

• Net weight (2.2 lb = 1 kg)
• 13.6 kg / 29 lb 15.3 oz (29.956 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.
