Trixi 250UN

• Country
• Austria

• Manufacturer / Brand
• HEA; Wien

• Year
• 1966/1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8565

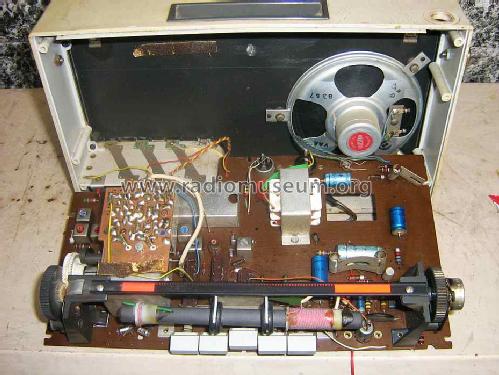

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• BF167 BF195 BF194 BF194 BF194 AC125 AC125 AC132 AC127 AC128 B30C250 BZY62

• Main principle
• Superheterodyne (common); ZF/IF 461/10700 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Trixi 250UN - HEA; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 160 x 70 mm / 11 x 6.3 x 2.8 inch

• Notes

• Ab Gerätenummer 115.501 Schaltungsänderungen siehe 2. Schaltplan.

• Price in first year of sale
• 1,498.00 öS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
