• Country
• France

• Manufacturer / Brand
• Hifivox - Production Barbieri; Paris

• Year
• 1963 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 355979

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• ECL86

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 115; 230 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Madrigal - Hifivox - Production Barbieri;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 410 x 180 x 320 mm / 16.1 x 7.1 x 12.6 inch

• Notes

• Haut-parleur ovale 16 x 24 cm.

  Tourne-disque Pathé-Marconi à 4 vitesses.

• Price in first year of sale
• 3,990.00 BFr

• Mentioned in

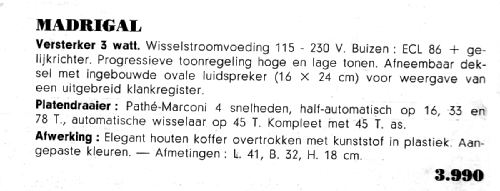

• -- Original prospect or advert (Radiorevue juin 1963)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
