• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8908

• • Brand: Hornyphon

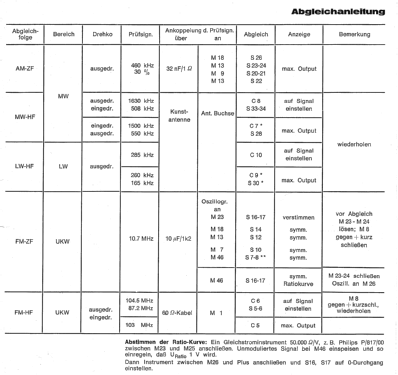

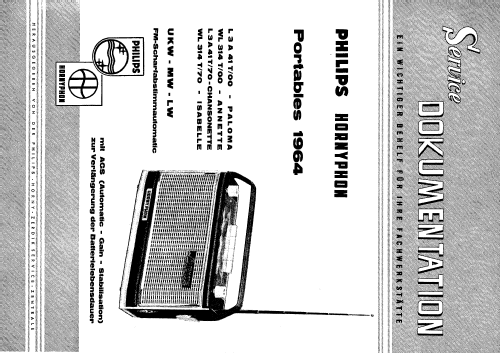

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF124 AF125 AF126 AF126 AF126 AC126 AC125 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 4 x 1,5V Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Annette WL314T [/00R /00C /00L] - Horny Hornyphon; Wien

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 235 x 140 x 68 mm / 9.3 x 5.5 x 2.7 inch

• Notes
• 3 Ausführungen:
  -/00R = anthrazit
  -/00C = beige
  -/00L = weinrot.
  Parallelgerät zum Philips L3A41T/00.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb
