• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 73397

• • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• AF114 AF115 AF116 AF116 AF116 OC75 OC72 OC72

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.25 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

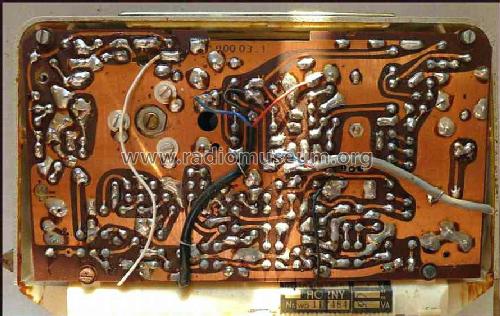

• Model: Arabella SA6128T/30F - Horny Hornyphon; Wien

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 200 x 135 x 64 mm / 7.9 x 5.3 x 2.5 inch

• Notes
•   Parallelgerät zum Philips L3W11T.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• RADIOBOTE, Österr. (Heft 69/2017, S.11 ff, Gerätebeschreibung)

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
