• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62912

• • Brand: Hornyphon

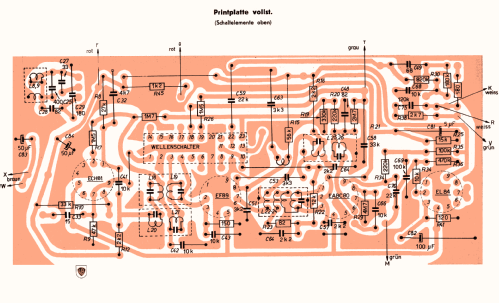

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

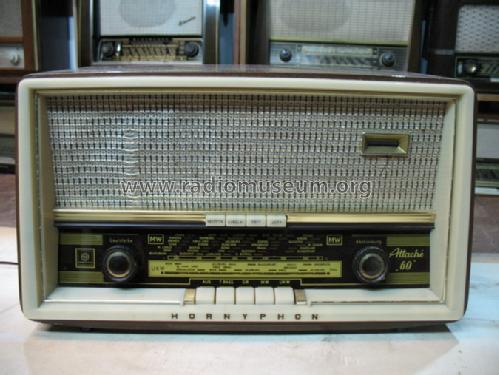

• Model: Attaché 60 W369A - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 440 x 260 x 200 mm / 17.3 x 10.2 x 7.9 inch

• Notes

• keine Tonblende; dafür 4 Klangregister-Tasten

  Parallelgerät zum Philips Revue 60 B3A93A.

  Siehe auch: Hornyphon Belcanto 60 WH369A - Dieses Radio mit Plattenspieler

• Price in first year of sale
• 1,595.00 öS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 19/1990, S.3, erwähnt in Firmengechichte)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
