• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1968/1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79524

• • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors
• BF195 BF195 BF195 BF194 BF194 BF195 BC147 BC149 BC147 AC126 BC147 BC147 BC149C BC148 AC128 AD161 AD162 BC149C BC148 AC128 AD161 AD162 Tr.Gl.=Metal-rectif. AA119 BA102 BZY94

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 13 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

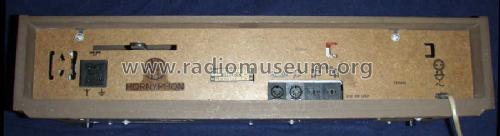

• Model: Belcanto SA5910 [/72 /82] - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 510 x 210 x 103 mm / 20.1 x 8.3 x 4.1 inch

• Notes
• 2 x Mittelwelle. Betrieb mit 2 externen Lautsprecherboxen.
  2 verschiedene Ausführungen: /72 = Palisander, /82 = Nuß matt
  2 verschiedene Printausführungen, mit und ohne Skalenbeleuchtung.
  Parallelgerät zum Philips 22RH781.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
