Deutscher Kleinempfänger 1938 für Batteriebetrieb DKE-38B (DKE1938B)
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1939–1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75359
-
- Brand: Hornyphon

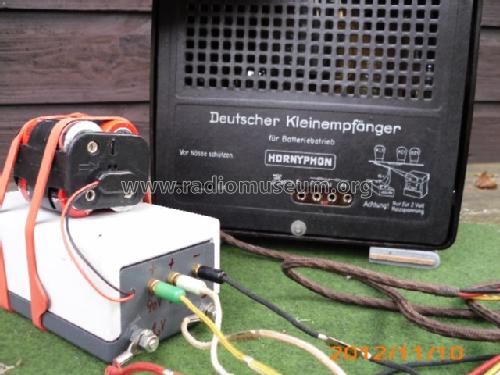

A _ Hornyphon_DKE 38B_Rueckwand.jpg
A _ Hornyphon_DKE 38B.jpg
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931).
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Deutscher Kleinempfänger 1938 für Batteriebetrieb DKE-38B - Horny Hornyphon; Wien
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 240 x 240 x 120 mm / 9.4 x 9.4 x 4.7 inch
- Notes
- Es gibt nur einen Batterie-DKE, aber zweierlei Rückwände: "DKE für Batteriebetrieb" sowohl mit als auch ohne die Jahreszahl 1938.
Siehe auch Deutschland. Normalerweise nur unter Gemeinschaftserzeugnisse geführt.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Author
- Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
- Other Models
-
Here you find 877 models, 785 with images and 585 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Horny (Hornyphon); Wien
Collections
The model Deutscher Kleinempfänger 1938 für Batteriebetrieb is part of the collections of the following members.
Forum contributions about this model: Horny Hornyphon;: Deutscher Kleinempfänger 1938 für Batteriebetrieb DKE-38B
Threads: 1 | Posts: 10
Hello, RM members. After taking a break for a while, I am getting ready to start my next project - a DKE-38B, from Hornyphon. Mine looks to be in excellent condition and does not appear to have been worked on before, so hopefully I won't encounter too many problems.
My question is about how to power this radio. I know I need +90 v., +6 v., and +2 v, but not the current ratings. What does everyone else do? Are there repro battery packs available? Should I just make a small AC-powered supply to get the required voltages? I'm not even sure what the original batteries looked like. Any help would be greatly appreciated. Thanks!
Michele Denber, 17.Sep.10
