• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 80068

• • Brand: Hornyphon

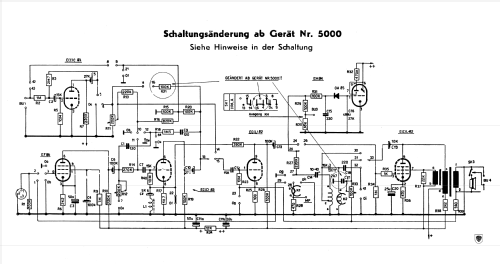

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC83 ECL82 EZ80 EM84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2.5 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Dioletta WM5100A - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 370 x 160 x 320 mm / 14.6 x 6.3 x 12.6 inch

• Notes

• 2-Spur Tonbandgerät, Bandgeschwindigkeit = 9,5 cm/sec. Spulen bis 18 cm Ø
  Parallelgerät zu Philips Maestro 100 EL3515 /80 und EL3515 /81

  Ausführliche Service-Unterlagen bei Philips Maestro 100 EL3515 /80

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
