• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1970

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 127878

• • Brand: Hornyphon

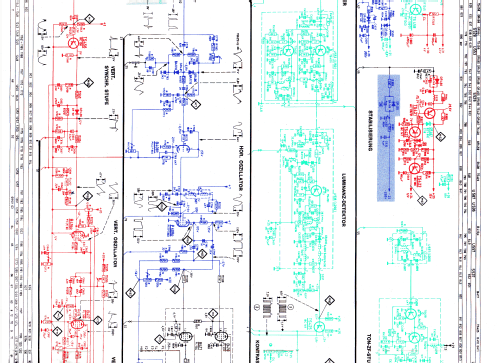

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• PCF200 PCF200 PCF200 PCF802 PL802 PCL86 PCF80 PL508 PL504 PL509 PY500 PD500 GY501 A66-120X

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Funkberater Exclusiv WT66K994 /64 /84 Ch = K70 - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 825 x 490 x 545 mm / 32.5 x 19.3 x 21.5 inch

• Notes

• Empfangsbereich: VHF und UHF.
  2 Ausführungen: /64 = Teak; /84 = Walnuß matt.

  Parallelgerät zum Philips Royal Color 26 S26K497.

• Net weight (2.2 lb = 1 kg)
• 50 kg / 110 lb 2.1 oz (110.132 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
