• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8643

• • Brand: Hornyphon

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC)

• Loudspeaker
• Induction Loudspeaker (very rare !) / Ø 30 cm = 11.8 inch

• Material
• Wooden case

• from Radiomuseum.org

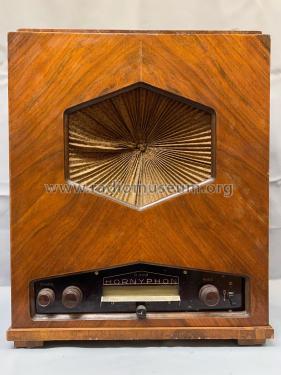

• Model: G303L - Horny Hornyphon; Wien

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 410 x 470 x 170 mm / 16.1 x 18.5 x 6.7 inch

• Notes
• Netzempfänger G301 mit eingebautem Hornyphon Farrand Induktor Dynamic Lautsprecher

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 440.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 877 models, 785 with images and 585 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
