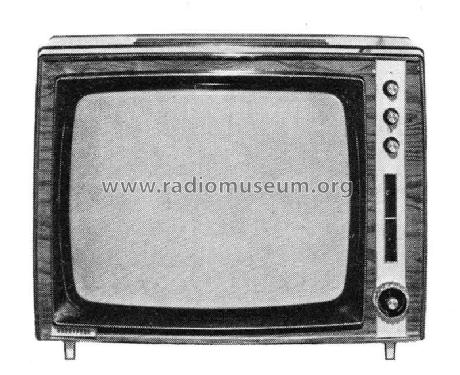

Hornyetta Luxus WT31T047 /30 Ch= T4
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1971
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 112657
-
- Brand: Hornyphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A31-120W
- Number of Transistors
- 26
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Line / Batteries (any type) / 220 / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Hornyetta Luxus WT31T047 /30 Ch= T4 - Horny Hornyphon; Wien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 380 x 290 x 250 mm / 15 x 11.4 x 9.8 inch
- Notes
-
Empfangsbereiche UHF und VHF.
Parallelgerät zum Philips X12T740.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Bauer. See "Data change" for further contributors.
