Konzertschrank WS650A
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8853
-
- Brand: Hornyphon
Hornyphon Konzertschrank WS650A

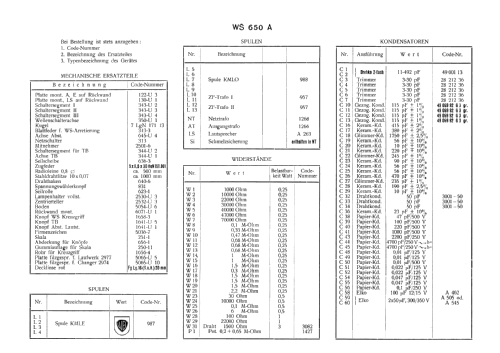

Click on the schematic thumbnail to request the schematic as a free document.

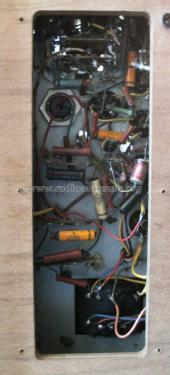

- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)

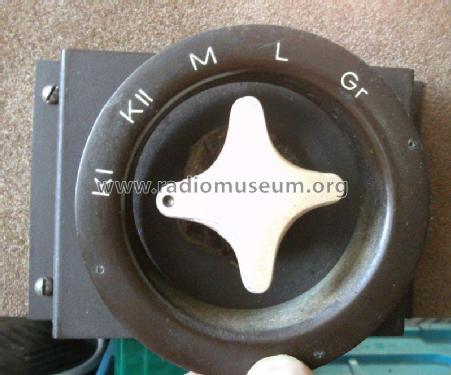

- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.

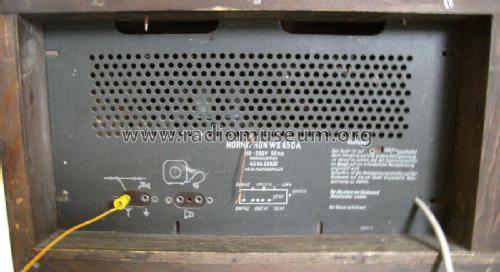

- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 150; 200; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Konzertschrank WS650A - Horny Hornyphon; Wien
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 900 x 840 x 460 mm / 35.4 x 33.1 x 18.1 inch
- Notes
- Plattenwechsler Philips 2974 oder Philips 2977 eingebaut.
- Net weight (2.2 lb = 1 kg)
- 55 kg / 121 lb 2.3 oz (121.145 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Unterlagen E.Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
