Universal-Konzertschrank WS761A
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8861
-
- Brand: Hornyphon

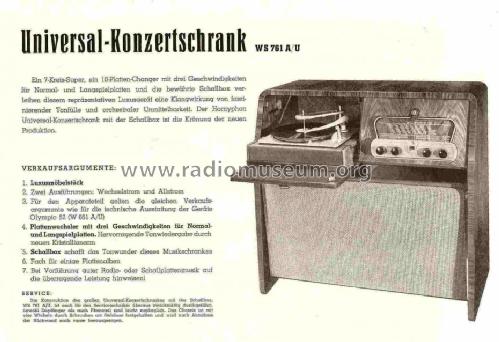

aus Horny Journal 1951

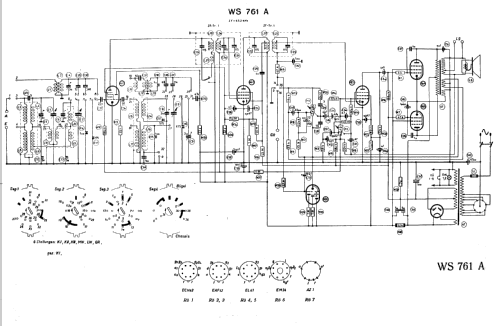

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 100; 110; 125; 150; 200; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Universal-Konzertschrank WS761A - Horny Hornyphon; Wien
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 977 x 946 x 465 mm / 38.5 x 37.2 x 18.3 inch
- Notes
- Mit Plattenwechsler Philips 2508.
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Unterlagen E.Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
