Lisette SA6332
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 62918
-
- Brand: Hornyphon
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 452-460/10700 kHz
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.35 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

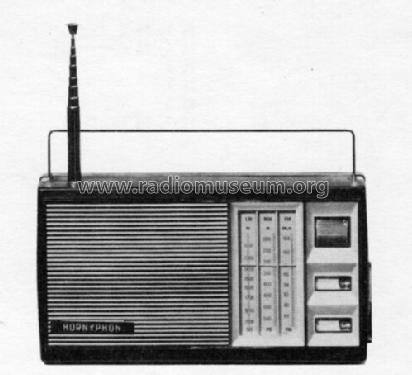

- Model: Lisette SA6332 - Horny Hornyphon; Wien
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 210 x 110 x 50 mm / 8.3 x 4.3 x 2 inch
- Notes
- Paralleltype zu Philips 90RL291.
Each semiconductor type listed once.
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Gerhard Heigl. See "Data change" for further contributors.
