• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8858

• • Brand: Hornyphon

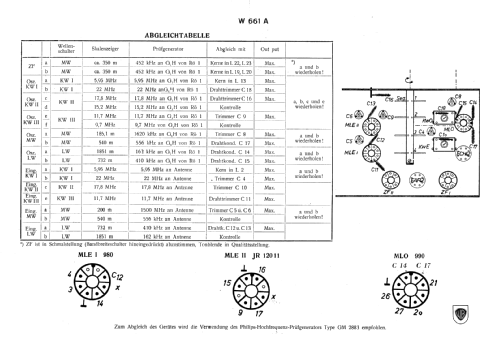

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH42 EAF42 EAF42 EL41 EM34 EL41 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 100; 110; 125; 150; 200; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org

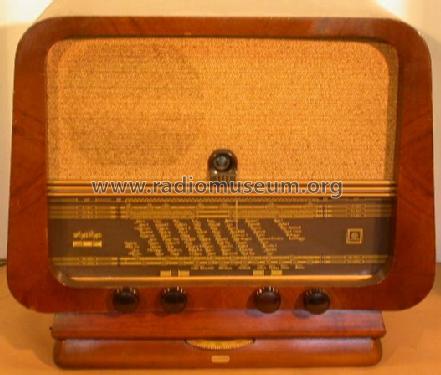

• Model: Olympic 52 W661/IIA - Horny Hornyphon; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 450 x 290 mm / 22.8 x 17.7 x 11.4 inch

• Notes

• 3 KW-Bänder

  Wie Hornyphon Olympic 52 W661A aber vorbereitet für das Philips UKW-Einbaugerät-7768.

  Parallelgerät zum Philips Barcarole 52 BA611 /IIA

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 876 models, 784 with images and 585 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Horny (Hornyphon); Wien
