• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1929–1931

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 8626

• • Brand: Hornyphon

• Number of Tubes
• 1

• Valves / Tubes

• Details
• Power: B-Battery Eliminator

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 150; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

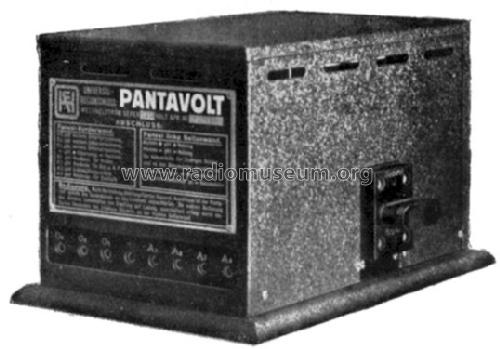

• Model: Pantavolt Art.650 - Horny Hornyphon; Wien

• Dimensions (WHD)
• 205 x 185 x 280 mm / 8.1 x 7.3 x 11 inch

• Notes

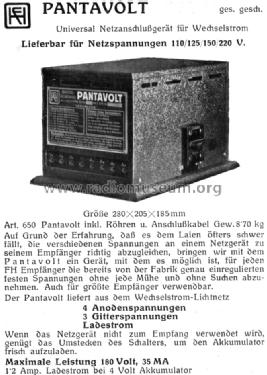

• Netzgerät für 4 Anodenspannungen, 3 Gitterspannungen und Ladestrom. Maximale Leistung 180V, 35mA, 1,2A Ladestrom bei 4V Akku.

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• - - Manufacturers Literature / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 877 models, 785 with images and 585 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
