Prinz 39W W134A

• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8760

• • Brand: Hornyphon

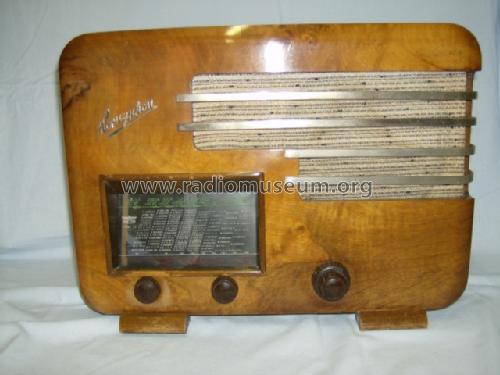

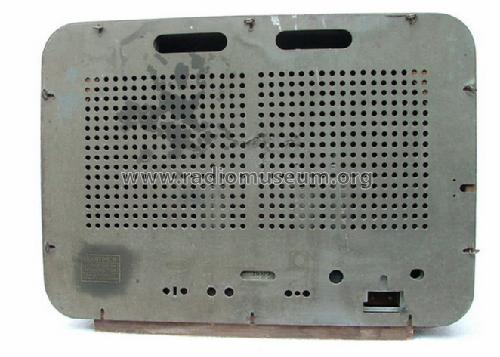

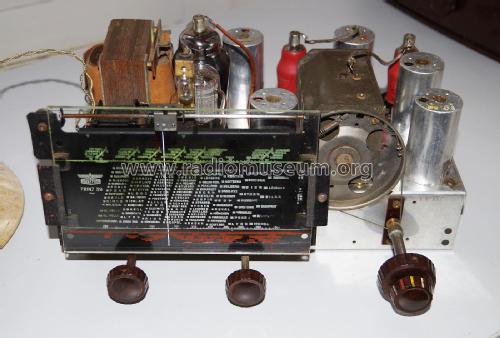

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• EK2 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Prinz 39W W134A - Horny Hornyphon; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 465 x 343 x 233 mm / 18.3 x 13.5 x 9.2 inch

• Notes

• Bandfilter-Eingang für MW und LW, Sparschaltung.
  Bei Phono 2 NF-Stufen, EF9 arbeitet dann als NF-Vorstufe in Triodenschaltung (Auskopplung der NF an G2).

• Net weight (2.2 lb = 1 kg)
• 10.2 kg / 22 lb 7.5 oz (22.467 lb)

• Price in first year of sale
• 208.00 RM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Literature/Schematics (1)
• -- Original-techn. papers.

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
