• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62901

• • Brand: Hornyphon

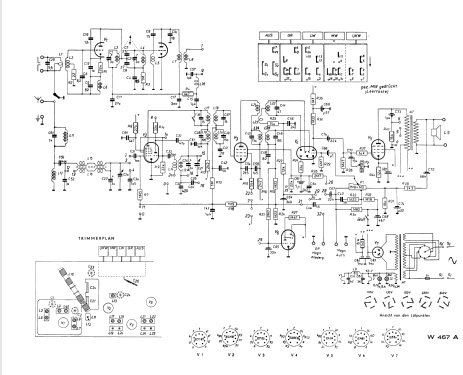

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM81 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Prinz 57 W467A - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 490 x 315 x 225 mm / 19.3 x 12.4 x 8.9 inch

• Notes

• Hornyphon Prinz 57 W467A  = ohne Klangtastenschalter

  2 weitere Ausführungen:
  Hornyphon Super-Prinz W467A /2 = Klangtastenschalter mit 3 Tasten.
  Hornyphon Attaché W467A /1        = Klangtastenschalter mit 5 Tasten

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Price in first year of sale
• 1,835.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 19/1990, S.3, erwähnt in Firmengechichte)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
