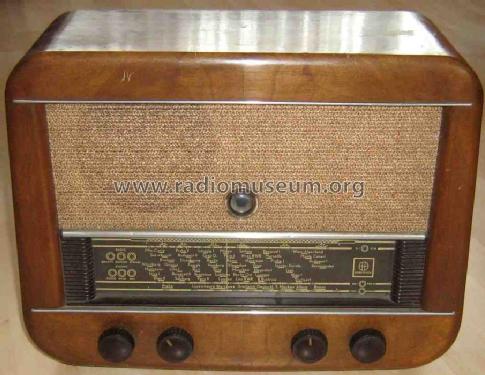

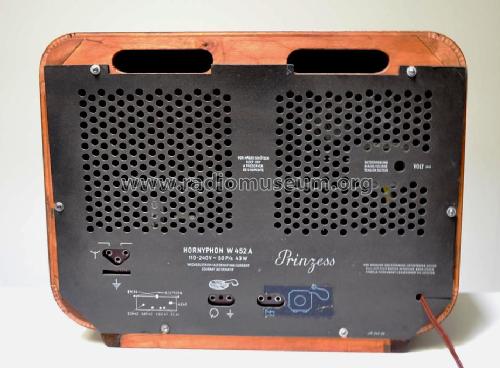

Prinzess W452A
Horny (Hornyphon); Wien
- Country
- Austria
- Manufacturer / Brand
- Horny (Hornyphon); Wien
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 8870
-
- Brand: Hornyphon
Horny Prinzess W452
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 458 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Prinzess W452A - Horny Hornyphon; Wien
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 457 x 344 x 200 mm / 18 x 13.5 x 7.9 inch
- Notes
-
Ausstattung: Anschluss für Antenne und Erde, Grammoanschluss abschaltbar mittels 2x3 stufiger Tonblende für GR und Radio, Tonblende kombiniert mit Bandbreitenregelung, Qualitätsstellung, kontinuierlich gehörrichtige Lautstärkeregelung, NF-Gegenkopplung, Fadingausgleich wirksam auf 2 Röhren, Magisches Auge zur Abstimmerleichterung, ZF-Sperrkreis eingebaut.
- Net weight (2.2 lb = 1 kg)
- 7 kg / 15 lb 6.7 oz (15.419 lb)
- Price in first year of sale
- 1,535.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Unterlagen E.Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
