• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72794

• • Brand: Hornyphon

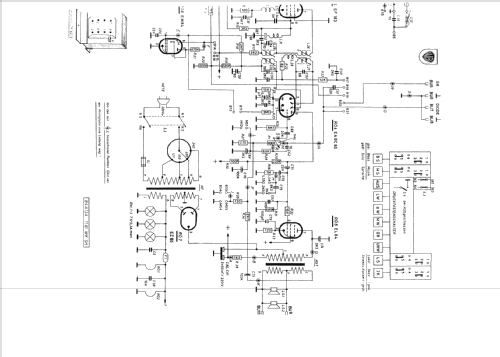

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF183 EABC80 EM84 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 127; 150; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rex W462A /00 /70 - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 600 x 235 x 245 mm / 23.6 x 9.3 x 9.6 inch

• Notes

• 2 Ausführungen:
  /00 = dunkles Holz, hochglanz
  /70 = helles Holz, matt

  Parallelgerät zum Philips Planoton B4A23A /00 /70.

  Vorgänger: Rex W461A /00 /70

  Nachfolger: Rex W463A /00 /70

  Siehe auch:

  Rex W462A /01 /71

  Aristona SA4220A Unterschiede (noch) nicht bekannt

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Price in first year of sale
• 2,295.00 ATS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
