TR2241 /09

Horny (Hornyphon); Wien

Data
Forum
Pictures
Collections

  • Year
  • 1984 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 300266
    • Brand: Hornyphon

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage

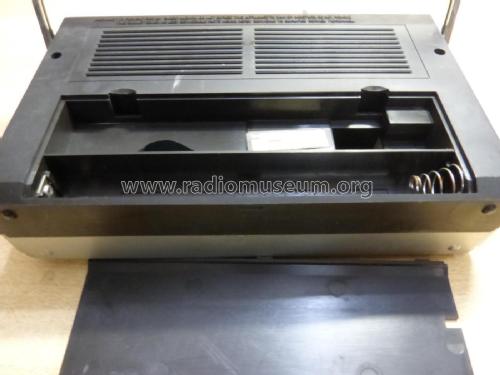

  • Line / Batteries (any type) / 50/60 Hz: 220-240 / R14: 4 x 1,5 V Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1.4 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TR2241 /09 - Horny Hornyphon; Wien
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 265 x 160 x 73 mm / 10.4 x 6.3 x 2.9 inch
  • Notes

  • 4 Wellenbereiche:
    LW: 150 - 255 kHz
    MW: 520 - 1605 kHz
    KW: 5.95 - 15.45 MHz
    FM: 87.5 - 108 MHz

    Teleskop- und Ferritantenne. Lautsprecher Z = 4 Ohm.

    Siehe auch das generische Modell TR2241 /00 /03 /04 /06 /08 /09 /13 /16 /19 mit Schaltungsunterlagen.

    Halbleiter nur einmal je Type gelistet.



  • Net weight (2.2 lb = 1 kg)
  • 0.950 kg / 2 lb 1.5 oz (2.093 lb)
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Karl Reiter. See "Data change" for further contributors.
