• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1953/1954

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 8879

• • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF40 EF42 EL41 AZ41 EM34

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Virtuoso WM9542A [/I /II /Ia] - Horny Hornyphon; Wien

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 355 x 280 x 196 mm / 14 x 11 x 7.7 inch

• Notes
• 3 Ausführungen:
  WM9542A/I = Ausführung in Lederkoffer
  WM9542A/II = Ausführung in Plastikkoffer
  WM9542A/Ia = Ausführung in Lederkoffer mit abnehmbarer Rückwand

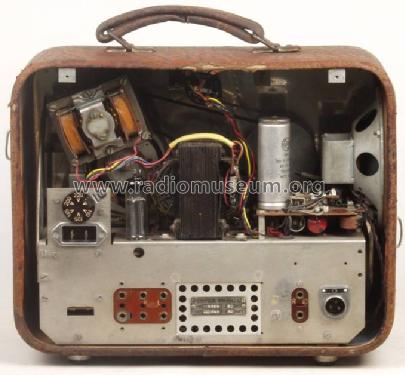

  Koffer-Magnetbandgerät, Fußschalter für/als Diktiergerätfunktion.
  Chassis entspricht dem Philips Modell EL3530.

• Net weight (2.2 lb = 1 kg)
• 10.7 kg / 23 lb 9.1 oz (23.568 lb)

• Price in first year of sale
• 4,500.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Unterlagen E.Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
