• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 8644

• • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• E442 E442 C443 506

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 155; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

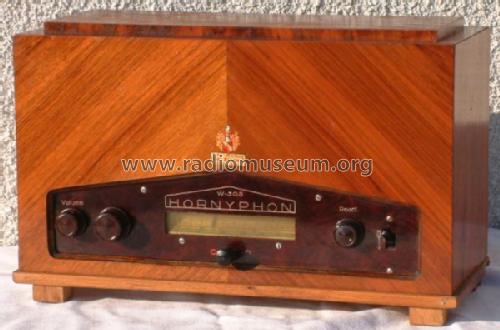

• Model: W303 [ohne LS] - Horny Hornyphon; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 250 x 180 mm / 16.5 x 9.8 x 7.1 inch

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Price in first year of sale
• 365.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
