• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1931 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 351456

• • Brand: Hornyphon

• Number of Tubes
• 4

• Valves / Tubes
• E442 E442 C443 506

• Main principle
• TRF with regeneration

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 155; 220 Volt

• Loudspeaker
• Induction Loudspeaker (very rare !) / Ø 28 cm = 11 inch

• Material
• Wooden case

• from Radiomuseum.org

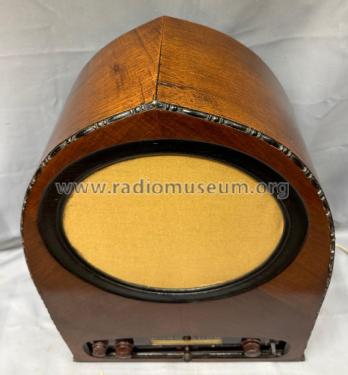

• Model: W303 [Kathedrale] - Horny Hornyphon; Wien

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 410 x 570 x 190 mm / 16.1 x 22.4 x 7.5 inch

• Notes

• Siehe auch Hornyphon W303 (ohne Lautsprecher) und W303L.

• Author
• Model page created by Herbert Weilinger. See "Data change" for further contributors.
