• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1965

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 86813

• • Brand: Hornyphon

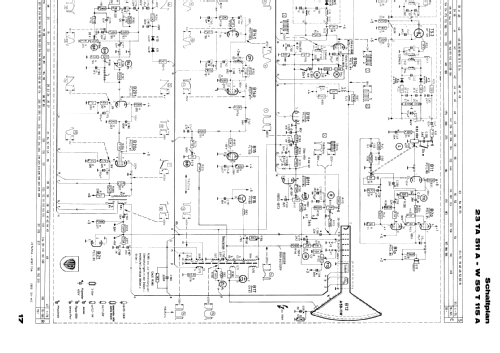

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC189 PCF86 EF183 PCF200 PCF200 PCL84 PCL85 PCL86 ECH84 PCF80 PF86 PCL85 ECH84 PCF802 PL500 PY88 DY87 A59-11W

• Number of Transistors
• 5

• Semiconductors
• AF186 AF186 AF126 AF126 AF126

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 190-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

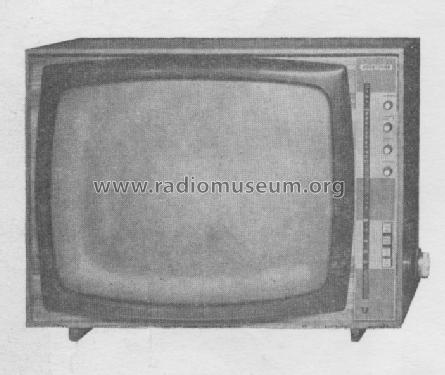

• Model: Wesir 23 W59T115A /00 /70 Ch= P7 - Horny Hornyphon; Wien

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 660 x 510 x 400 mm / 26 x 20.1 x 15.7 inch

• Notes

• Fernsehband VHF (I+III), UHF (IV/V). 59-cm-Rechteckbildröhre.
  2 Ausführungen:
  /00= Edelholtkassette dunkel-hochglänzend,
  /70= hell-matt.

  Paralleltype zum Philips 23TA511A.

  Neupreis mit UHF: ATS 6780,--

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
