Festival 60L
Hortson
- Country
- France
- Manufacturer / Brand
- Hortson
- Year
- 1959 ?
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 232246
FR_Hortson_Festival_60L_front controls
FR_Hortson_Festival_60L_Inputs
FR_Hortson_Festival_60L_Outputs

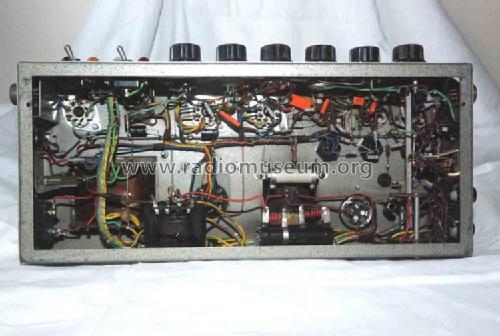

FR_Hortson_Festival_60L_Inside
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 30 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Festival 60L - Hortson
- Shape
- Boatanchor (heavy military or commercial set >20 kg).
- Dimensions (WHD)
- 430 x 370 x 210 mm / 16.9 x 14.6 x 8.3 inch
- Notes
-
Wall mounted cinema amplifier. Inputs Film Micro (integrated) Disk. Output Pilot speaker via separate EL84 audio amplifier, main output 4, 8, 16, 500 ohm.
- Net weight (2.2 lb = 1 kg)
- 16.4 kg / 36 lb 2 oz (36.123 lb)
- Author
- Model page created by Nicholas Roberts. See "Data change" for further contributors.
