• Country
• Germany

• Manufacturer / Brand
• Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

• Year
• 1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25233

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC81 ECH81 EF93 EABC80 EM85 EL84

• Number of Transistors

• Semiconductors
• Tr.Gl.=Metal-rectif.

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

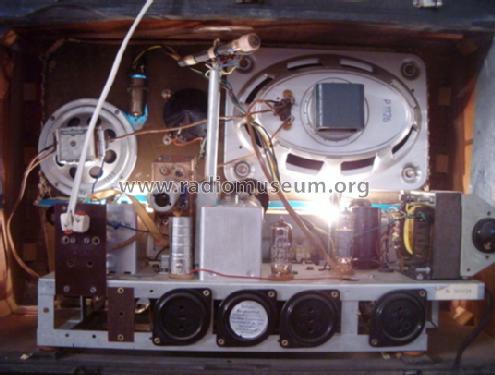

• Model: Imperial 6006W - Continental-Rundfunk GmbH

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 620 x 370 x 290 mm / 24.4 x 14.6 x 11.4 inch

• Notes

• Achtung: Chassis hat keine galvanische Trennung vom Netz! Trenntrafo verwenden!

  Drehbare Ferritantenne.

• External source of data
• Rutishauser/EE

• Source of data
• -- Schematic / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Funkgeschichte der GFGF (Band 7 "Continental-Rundfunk GmbH")
