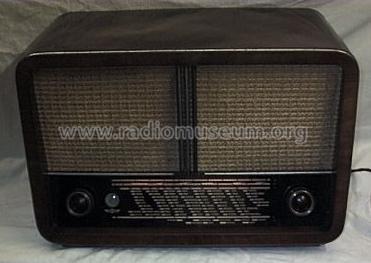

Imperial J 601W

Continental-Rundfunk GmbH (Stassfurter Imperial); Osterode/Harz

Data
Forum
Pictures
Collections

  • Year
  • 1950/1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 25222

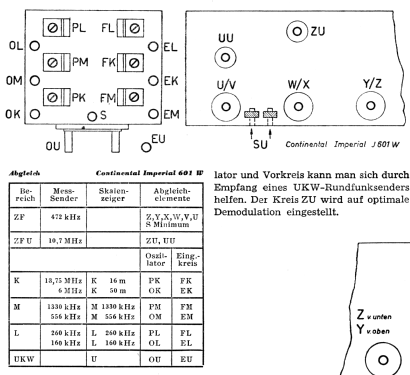

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 8 AM circuit(s)     6 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Imperial J 601W - Continental-Rundfunk GmbH
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 520 x 360 x 270 mm / 20.5 x 14.2 x 10.6 inch
  • Notes
  • UKW-Bereich 85 - 105 MHz. UKW-Röhren gegen Mehrpreis (24,30 DM).
  • Net weight (2.2 lb = 1 kg)
  • 12.2 kg / 26 lb 14 oz (26.872 lb)
  • Price in first year of sale
  • 298.00 DM
  • External source of data
  • Rutishauser/EE
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Imperial is part of the collections of the following members.

 Forum

Forum contributions about this model: Continental-Rundfunk: Imperial J 601W

Threads: 1 | Posts: 1

Dear Colleagues,

I have reviewed the existing schematic for the 601W and it does not include the EF42 tube and the complete "cage" for the UKW tuner.

The LW, MW, and KW band functions as normal (after I installed the missing AZ11 rectifier); however, the UKW band  is  silent.

I have reviewed the following model year Imperial 602W, and it reflects the EF42 installation with slightly different sswitch contacts (using the EF41, EBC41 tubes etc - with the selenium rectifier.

Is it possible that a member may have a schematic for the "prototype variant"?

I am especially intrigued by the stated frequency range of 85-105Mhz for this early UKW equipped radio.

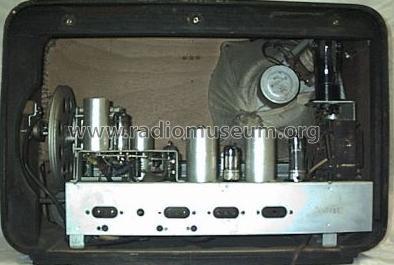

After reviewing the rear panel submitted by Peter Böhm, there is different power consumption listing for the different versions
without UKW installed, the panel reads ca 60 Watt
with UKW installed the panel reads ca. 70Watt
all other notations ar eidentical.

Additionally, the production numbers appear to be distinctly different
without UKW installed, the stamped numbers appear to be 5 digits. . . . . .
with the UKW installed, the stamped production numbers on my chassis are 147336. . . . . .

On the inside of the rear panel, there is the small paper label which identifies the 8 tubes installed and the erstes, zweites, und drittes filters (note - the UKW erroneously list 10,7KHz instead of 10,7 MHz for the UKW IF transformers)

Respectfully,
Robert
